Hydraulic vs. Traditional Hangar Doors Compared

Pick the wrong hangar door and the building fights you for decades. The hydraulic vs traditional hangar doors decision comes down to five measurable axes: floor space, wind behavior, opening speed, climate control, and lifetime cost.

No door type wins all five. Each design buys its advantage by paying somewhere else, usually in clearance, structure, or maintenance hours. This comparison keeps the trade-offs quantified and honest, including the cases where an older door style is simply the better buy.

What Counts as a Traditional Hangar Door

Traditional covers the mechanical families that lift, fold, or slide instead of swinging one leaf outward. Sliding doors run on a bottom rail and park beside the opening. Bi-fold doors hinge mid-span and fold upward. Vertical lift and sectional doors travel straight up their tracks and stack above the header.

Scale separates a hangar door from an ordinary industrial shutter. Roller shutters in the RAX Door catalog span up to 12,000 mm, which covers most factory openings. Full-face hangar doors routinely exceed that, so aviation projects move to sliding, folding, or one-piece hydraulic leaves engineered per opening.

Contractors put the usual price order this way: sliding is the most affordable upfront, bi-fold sits mid-range, and hydraulic or engineered vertical-lift doors cost the most (RCI Doors). Rank is not a verdict, though. The next eight sections show where each design earns its premium back.

How a Hydraulic Hangar Door Actually Works

A hydraulic hangar door is one welded steel leaf, sized to the full opening, pivoting on main hinges at the bottom edge. Two hydraulic cylinders raise it. The frame carries welded steel cross members. Spherical bearings let it flex slightly under load while the cylinders stay aligned, a detail Overhead Door highlights in its hangar literature.

The leaf needs little building headroom; one owner reports his door needing only a 6 inch header. Fully raised, the leaf lies flat and throws a shaded canopy over the apron, handy during summer work with the doors open. Fully closed, it seals against a stationary frame, which is why hydraulic owners tend to report fewer drafts.

Safety rests on cylinder hygiene. Schweiss engineering pages note that velocity fuses hold the leaf if a hose fails, while plain restrictors only slow a fall to roughly 7 seconds. We cover the full buying case for this design separately in why choose a hydraulic hangar door.

Floor Space and Opening Clearance Compared

The hydraulic leaf pays for its simplicity in one currency: a swing arc. Owners describe it as a no parking zone painted across the apron, because the rising leaf sweeps everything in its path. One VansAirForce member wrote about sprinting to drag a parked RV out from under a neighbor’s opening door.

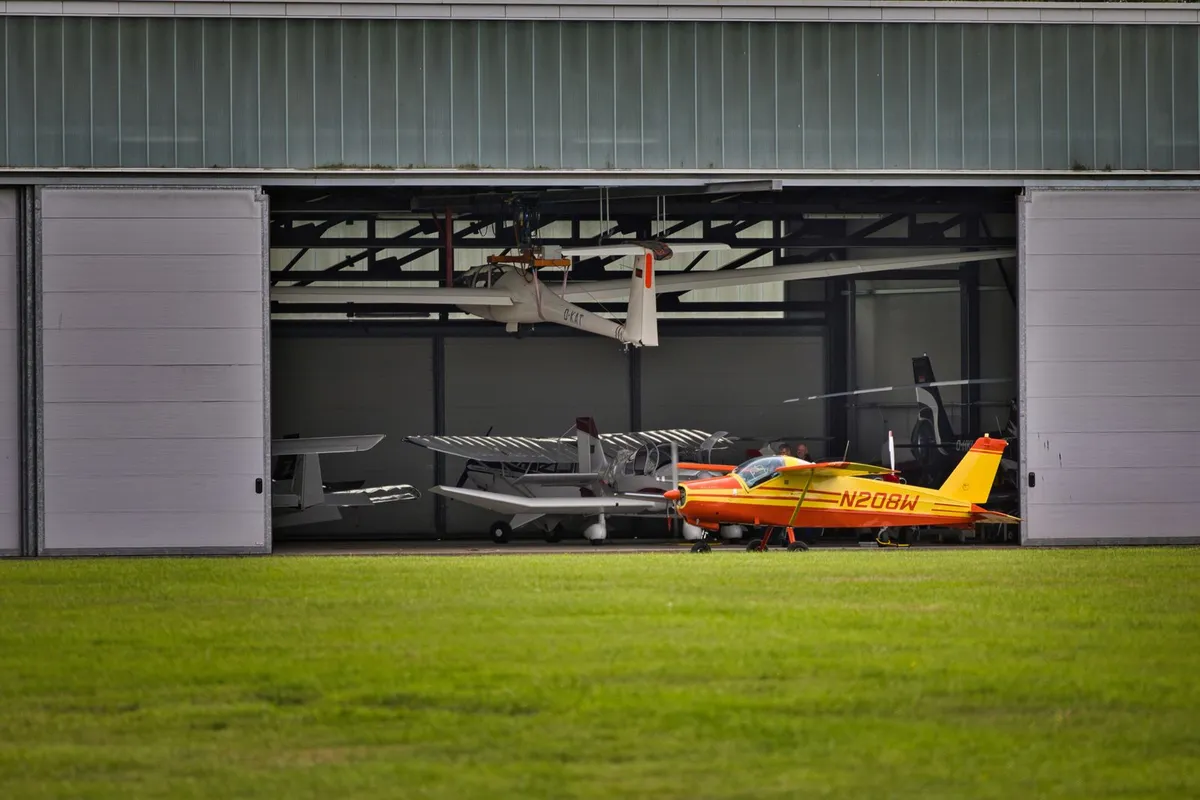

Sliding doors spend floor space differently. Each leaf parks along the side wall. A full-face opening thus needs clear wall length or a built-on door garage, which SpanTech notes raises hangar size and lease cost. Bottom tracks also want a clean apron edge.

Bi-fold doors split the difference. They lift rather than swing, so parking close is realistic, and a 44 ft owner-reported installation lost only 7 inches of clear height. Accordion styles lose roughly 3 feet of clear width on a 40 foot opening, according to one owner’s measurements.

Wind Loads in Open and Closed Positions

Open position is where these designs behave least alike. A hydraulic leaf at 90 degrees presents its full face to the wind. One owner compares the effect to a sail in a high wind. Schweiss notes the open leaf reaches out roughly twice as far as a folded bi-fold.

Closed position flips the argument. A hydraulic leaf presses against a stationary overlapping frame, sealing well against wind and rain. Sliding panels meet at stiles that can rattle in storms. A building contractor on VansAirForce argues track doors fail first in Florida winds, an owner observation worth weighing rather than a standard.

Whatever you buy, respect the falling-door risk. Schweiss rates its lift straps at 29,000 lbs and credits velocity fuses for near-instant holding. Owners repeat one rule across every mechanism: nothing parked, nothing standing under an open leaf, ever.

Insulation and Climate Control Compared

SpanTech gives the insulation edge to rigid sliding doors, whose insulated panels hold temperature in low-cycle storage and maintenance hangars. Vertical-lifting designs trail, because leaves, straps, and hinges limit panel thickness.

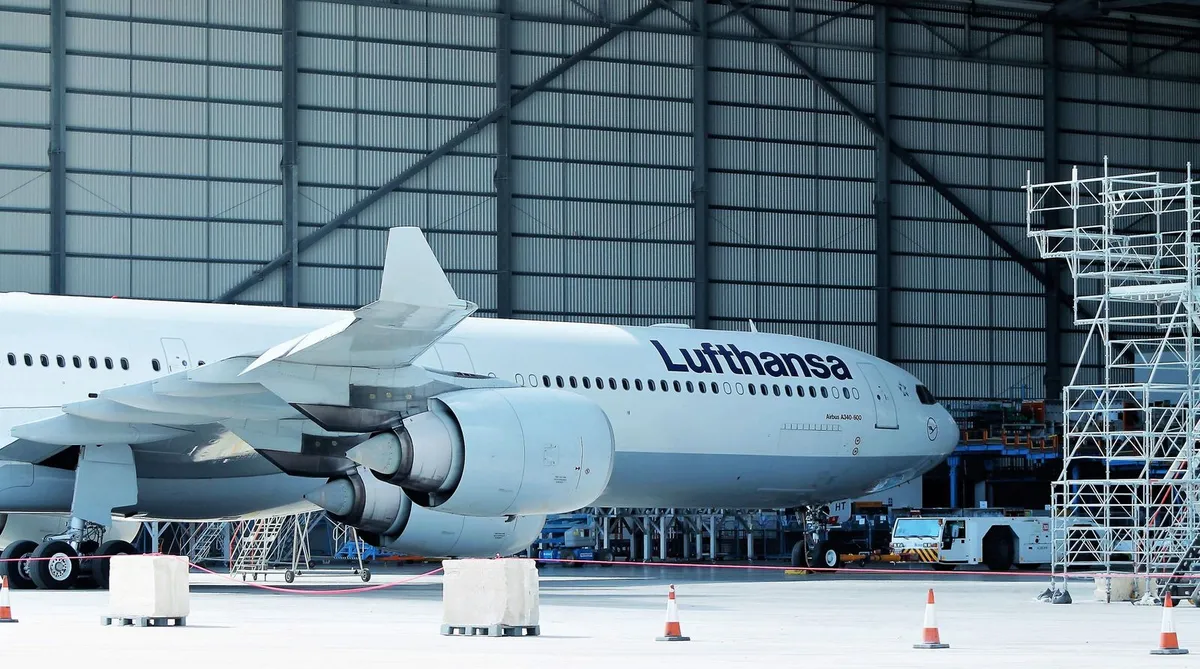

Sectional doors close that gap with sandwich panels. Panels with 40 to 50 mm PU foam cores reach a U-value of 0.33 W/m²K. Torsion hardware rated beyond 30,000 cycles keeps frequent openings affordable, which matters more than panel thickness in busy hangars.

Watch the weight budget either way. Owners warn it is easy to overload a leaf with added cladding and foam. The common fix, 1 inch rigid foam glued inside, still needs the maker’s weight allowance. For projects set on the sliding route, purpose-built sliding aircraft hangar doors integrate the insulation and bottom rail from the drawing stage instead of as an afterthought.

Maintenance Demands Year After Year

Hydraulic upkeep centers on the cylinders: greasing hinges, watching hoses, and confirming the velocity valve sits at the cylinder end with no hose in between. Owners report 5 to 7 years of grease-only service on well-installed leaves, while failure threads elsewhere describe leaking hoses and internally bypassing cylinders.

Bi-fold doors trade hydraulics for hardware inspection: cables or straps, hinge pins that creep, and upper hinges that are genuinely awkward to reach and grease. Sliding doors are simplest, but their bottom tracks collect grit, ice, and snow, and a frozen bottom seal has been known to buckle a hydraulic leaf too.

Cycle ratings separate door families too, as our high speed door vs roller shutter comparison shows. Budget the small failures as well as the big ones. Owners report replacement remotes above $250, new bifold cables under $200, a cable-to-strap conversion quoted near $10,000, and a stubborn seal repair billed above $2,000.

Lifecycle Cost Beyond the Purchase Price

Real invoices beat category averages. One owner itemized a 44 ft bi-fold at $6,800 for the door, $1,000 for sheeting and insulation, and $800 freight. He installed it himself with a forklift and a neighbor. His accordion-using neighbor priced that style at about half the bi-fold quote and a third of his hydraulic bids.

Our opinion is simple: buy on the ten-year bill, not the invoice. A cheap leaf with the wrong load path bills you every winter, and the priciest hydraulic kit cannot earn back a swing arc your apron never had.

Retrofitting an Existing Hangar With a New Door

Retrofit starts at the header. A hydraulic leaf needs only inches of it, one owner reporting 6, which spares low buildings. Vertical lift and bi-fold doors need stacking room or a projected truss. Both push reaction loads into the frame top, so SpanTech advises checking the structure before ordering.

Power is the second constraint. One owner retrofitted a 39 ft swing door running two 110V motors on 20:1 gearboxes for under $12,000 all-in, no three-phase required. Follow the shipped drawings exactly during installation; the same thread documents a rejected door after a builder deviated from them on advice.

Which One Should You Choose for Your Facility

Hydraulic vs traditional hangar doors resolves by facility, not by brand loyalty. Match the load path, the apron, and the traffic, and the right door picks itself, as the table below shows.

Skip hydraulic entirely when snow banks pile against the leaf, when the apron cannot give up its arc, or when nobody on site can service cylinders. Run the worked example and the choice sharpens. A $6,800 bi-fold invoice plus a lost afternoon of cable care beats a hydraulic quote when the apron runs short. The hydraulic vs traditional hangar doors question rewards buyers who measure the site before they measure the price.
