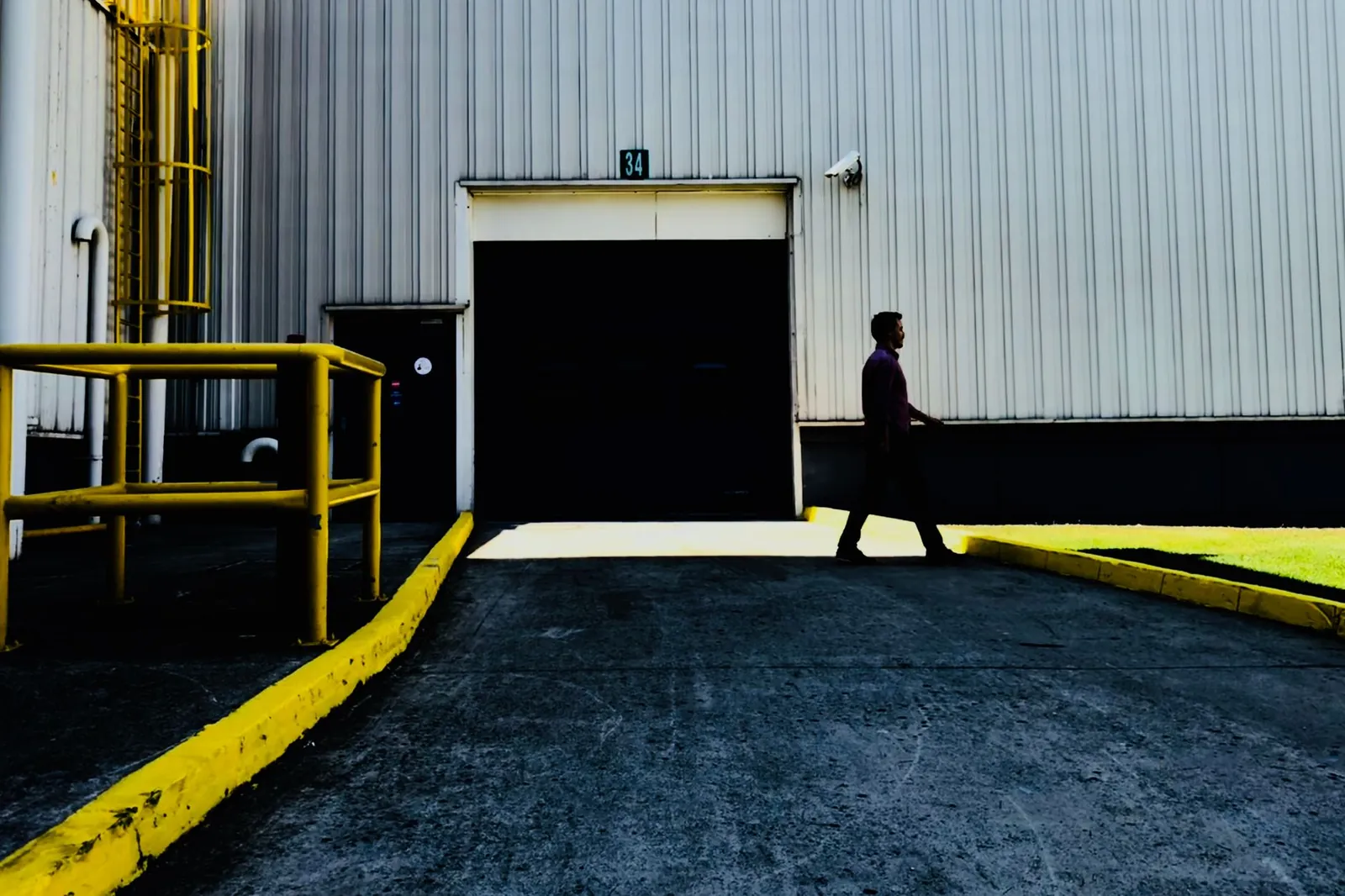

High Speed Stacking Door

Up to 1.5 m/s · Large Openings CE · EN 13241 Full technical drawings

01 · Overview

High Speed for Large Industrial Openings

High speed stacking doors are designed for large industrial openings where standard high speed doors cannot reach. Unlike roll-up high speed doors that coil into a compact housing, stacking doors fold and stack panels vertically, allowing much larger widths (up to 10+ meters) while maintaining high-speed operation up to 1.5 m/s.

RAX manufactures high speed stacking doors with reinforced PVC or fabric curtains, heavy-duty track systems, and servo motor drive. Panels stack neatly above the opening when open, maximizing drive-through width. Wind resistance rated to Class 3 (700 N/m²) with reinforced bottom bars and side guides.

High speed stacking doors are ideal for aircraft hangars, shipyards, large warehouses, and industrial facilities with wide openings requiring frequent high-speed access.

Get a Free Quote

02 · Key Features

Engineered for Wide Openings

Large Width Capability

Up to 10+ meters wide — significantly larger than standard high speed doors. Panels stack vertically when open, preserving full drive-through width. Ideal for aircraft hangars and wide industrial openings.

High-Speed Operation

Opening speeds up to 1.5 m/s with servo motor drive. Frequency converter for smooth acceleration/deceleration. Reduces energy loss and maintains climate control in large spaces.

Heavy-Duty Construction

Reinforced PVC or fabric curtains with heavy-duty track systems. Designed for high-cycle industrial use. Wind resistance Class 3 (700 N/m²) with reinforced bottom bars.

Space-Efficient Stacking

Panels stack compactly above the opening. No swing-out clearance required. Minimal headroom requirement compared to sectional doors of similar width.

Safety Systems

Photocells, pressure-sensitive bottom edge, emergency stop. Compliant with EN 12453. Optional light curtains for enhanced personnel protection.

Smart Control

PLC-based control with LCD display. Programmable speeds, delay times. Remote operation and diagnostics. Integration with BMS and WMS systems.

Get a Free Quote

03 · Technical Data

Technical Specifications

Photocells, pressure-sensitive bottom edge, emergency stop

CE EN 13241 / EN 12453 (held); ISO 9001:2015; SGS material reports

Custom engineered to your opening size and specification

Product	High Speed Stacking Door (also: Stacking High Speed Door · Wide Opening High Speed Door)
Category	High Speed Doors
Curtain material	Reinforced PVC or heavy-duty fabric
Opening speed	Up to 1.5 m/s (adjustable)
Closing speed	Up to 1.0 m/s (adjustable)
Motor type	Servo motor with frequency converter
Maximum width	10,000+ mm (custom engineered)
Maximum height	8,000 mm (custom)
Wind resistance	Class 3 (700 N/m²) per EN 12424
Safety features
Certification
Order

Get a Free Quote

04 · Applications

Where Stacking High Speed Doors Excel

Aircraft Hangars

Wide openings for aircraft access. High speed reduces energy loss in climate-controlled hangars. Stacking design preserves full width when open. Wind resistance critical for large openings.

Shipyards & Marine Facilities

Large openings for vessel access. Heavy-duty construction withstands marine environment. Fast operation maintains workshop climate control.

Large Warehouses

Wide loading bays and internal divisions. High speed supports high-throughput logistics. Stacking design maximizes drive-through width for large vehicles.

Industrial Facilities

Manufacturing plants with wide internal divisions. High speed maintains temperature zones. Reduces energy loss between production areas.

Event Venues

Exhibition halls and sports facilities requiring wide, fast-access openings. Stacking design provides clean appearance when open.

Logistics Centers

Large truck access points with high-frequency traffic. Fast operation reduces wait times. Wind resistance important for large openings.

Get a Free Quote

05 · Customization

OEM / ODM & Customization

RAX supports full private-label production of the High Speed Stacking Door: custom curtain material, RAL color matching, motor specification, control system programming, packaging printing and installation-manual translation (EN/ES/FR/AR/RU). Start with an OEM sample and scale to container-load branded production. Custom molds and tooling records are archived for up to 5 years — no extra tooling fee on repeat orders, all under strict NDA.

Get a Free Quote

06 · Compliance

Applicable Standards

EN 13241:2003+A2:2016

Core CE product standard for industrial, commercial, and garage doors. Covers both manual and powered doors. Requires Declaration of Performance (DoP) under CPR 305/2011.

EN 12453:2001

Safety requirements for powered doors. Specifies force limiting, safety devices, and control system requirements.

EN 12424:2000

Wind load resistance classification. Defines Classes 0–5. Stacking high speed doors typically achieve Class 3 (700 N/m²).

CE Marking

Mandatory for export to EU/UK markets. RAX provides CE technical file and Declaration of Performance with every shipment.

Get a Free Quote

07 · Why RAX

Why Buyers Choose RAX for Stacking High Speed Doors

27-year zero-leak track record — 5,000+ overseas projects delivered since 1999, with no leakage complaints on door bodies
Large opening capability — up to 10+ meters wide, ideal for hangars, shipyards, and wide industrial openings
High-speed operation — up to 1.5 m/s minimizes energy loss during frequent access
Heavy-duty construction — reinforced curtains and track systems for high-cycle industrial use
Deep customization — every door engineered to your exact size, specification, and application requirements
Full documentation package — English installation manual, wiring diagrams, CE technical file

Get a Free Quote

How wide can stacking high speed doors be?

Up to 10+ meters wide — significantly larger than standard high speed doors (typically 3–6 m). Panels stack vertically when open, preserving full drive-through width. Custom engineered for your specific opening.

What is the opening speed?

Up to 1.5 m/s opening speed, 1.0 m/s closing speed. Speed is adjustable via PLC control system. Servo motor with frequency converter ensures smooth operation.

What applications are best for stacking doors?

Aircraft hangars, shipyards, large warehouses, industrial facilities with wide openings, event venues, and logistics centers. Any application requiring wide, fast-access openings.

What safety features are included?

Photocells, pressure-sensitive bottom edge, emergency stop. Optional light curtains. All compliant with EN 12453 safety requirements for powered doors.

Do you provide installation?

No — RAX is a pure manufacturer. Doors ship with English installation manuals, wiring diagrams, and remote support.

What is the lead time and warranty?

Standard configurations: 12–20 days. Custom first order: 20–35 days. Repeat orders: 15–20 days. Warranty: curtain 10 years, motor and control 5 years.

09 · Get Started

Get Your High Speed Stacking Door Proposal

Send your opening size, required speed, and application type — we reply with a specification, lead time, and quote.
