Selecting the correct industrial door architecture dictates the operational speed, energy efficiency, and security of modern commercial facilities. Manufacturing plants, cold storage distribution centers, and pharmaceutical cleanrooms each impose distinct mechanical stresses on doorway thresholds. Specifying an incompatible door system leads to rapid mechanical fatigue, severe building envelope thermal losses, and costly material handling delays.
Table of Contents
- Major Categories of Industrial Doors: Architectural Overview
- High-Speed Roll-Up Doors: Rapid Cycles and Climate Containment
- Insulated Sectional Overhead Doors: Thermal Envelope Efficiency
- Rolling Steel and Security Shutters: Maximum Physical Defense and Space Saving
- Specialty Cleanroom and Cold Storage Doors: Controlled Environment Isolation
- Industrial Fire-Rated and Wind-Load Doors: Structural Code Compliance
- Total Cost of Ownership Matrix: Initial CAPEX vs. 10-Year Lifecycle OPEX
- Facility Selection Decision Matrix: Matching Door Types to Operational Demands
- Engineer and Specify the Right Industrial Door Solution
Based on our engineering team’s field experience commissioning commercial door systems across heavy industrial facilities and logistics warehouses, selecting the best door requires evaluating opening cycle velocity, thermal R-values, structural wind load ratings, and overhead clearance footprints. We compiled this comprehensive engineering selection guide to help facility directors and plant engineers match the optimal industrial door type to their specific operational environment.
Major Categories of Industrial Doors: Architectural Overview
Commercial industrial facilities rely on four primary door categories. Each type is engineered around specific mechanical trade-offs between operating velocity, stationary thermal insulation, physical defense, and ceiling clearance.
Primary Operational Drivers: Speed, Insulation, Security, and Footprint
Facility engineers must evaluate four core operational drivers before selecting a doorway barrier. Operating cycle frequency dictates whether a high-speed automated system is required to maintain internal climate control. Thermal requirements determine the necessary panel core density and perimeter compression sealing. Structural security demands heavy-gauge interlocking steel slats to resist forced entry. Finally, interior building clearance determines whether overhead horizontal tracks or compact coiling drums are required.
Balancing Initial Purchase Price Against 10-Year Lifecycle Demands
Evaluating industrial door systems solely on initial purchase price frequently creates massive maintenance liabilities. High-frequency loading bays that install low-cost manual sectional doors suffer recurring spring breakage and collision damage. Investing in heavy-duty automated systems with variable frequency drives and breakaway tracks delivers substantial operational cost reductions within two years.
High-Speed Roll-Up Doors: Rapid Cycles and Climate Containment
High-speed roll-up doors represent the premier solution for high-throughput logistics terminals and environmental separation zones.
Operating Velocities (40 to 120 IPS) and Air Exchange Physics
High-speed fabric doors achieve opening speeds between 40 and 120 inches per second (1.0 to 3.0 m/s). This rapid cycle time allows forklift operators to travel smoothly through doorways without stopping. Rapid operating cycles reduce total doorway open duration by up to 70%, arresting massive air exchange between conditioned production areas and ambient warehouse zones.
Flexible Self-Repairing Breakaway Curtains
Modern commercial operators integrate solid-state Variable Frequency Drive (VFD) inverters that ramp motor acceleration curves dynamically. Soft-start and soft-stop profiles eliminate mechanical torque shock across drive sprockets, roller chains, and drum bearings. Programmable logic controllers allow facility engineers to fine-tune opening acceleration, holding dwell timers, and closing deceleration based on shifting traffic densities throughout peak logistics shifts.
Modern high-speed doors utilize durable multi-layer PVC curtains equipped with flexible zipper side edges. When struck by a moving forklift or pallet truck, the curtain dislodges safely from the guide tracks without tearing or damaging structural steel frames. On the subsequent upward cycle, automated re-feeding blocks guide the zipper back into the vertical tracks, restoring full environmental sealing in seconds.
Ideal Facilities: High-Traffic Logistics, Distribution, and Food Processing
High-speed doors are engineered for facilities experiencing more than 50 daily operating cycles per doorway. Food processing plants, beverage packaging lines, and cross-dock distribution hubs rely on high-speed fabric systems to prevent pest ingress, maintain air pressure differentials, and sustain uninterrupted logistics flow.

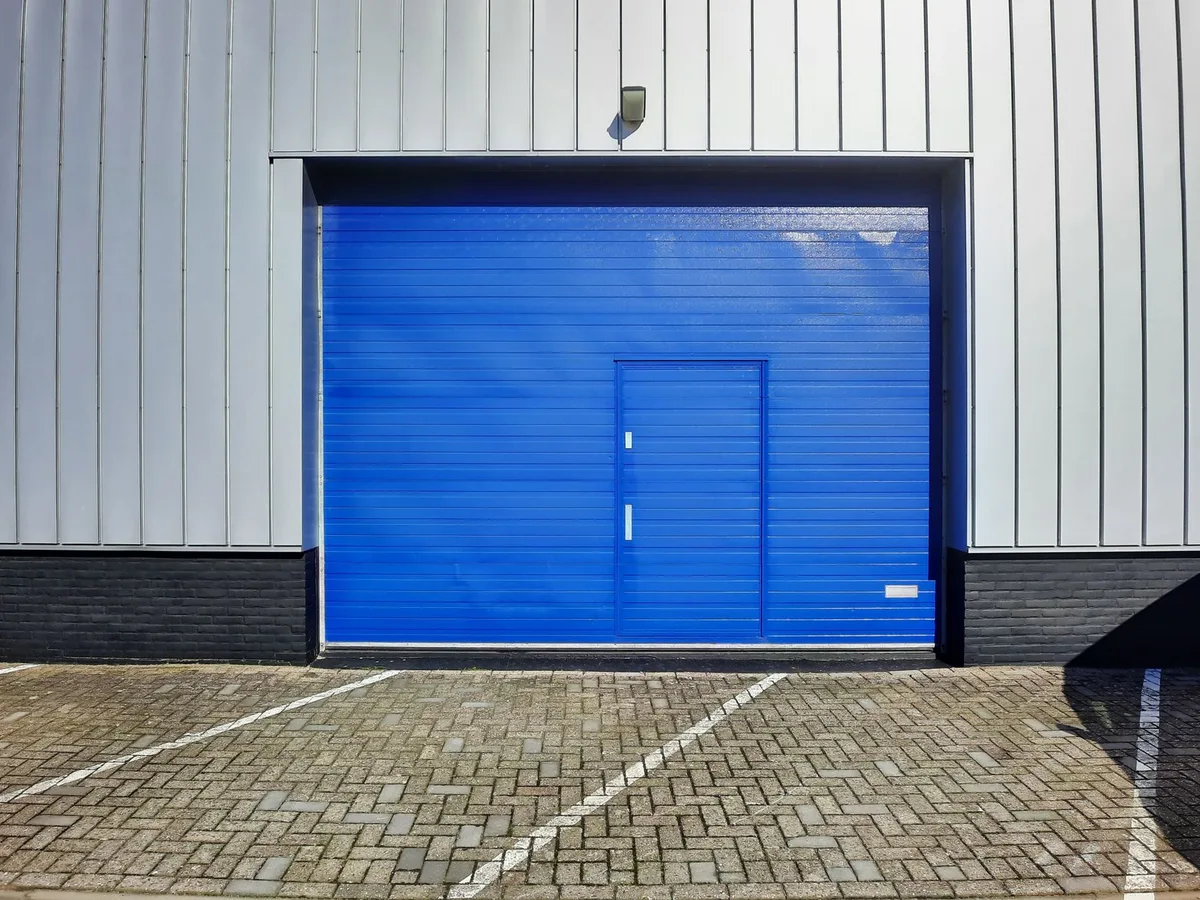

Insulated Sectional Overhead Doors: Thermal Envelope Efficiency
Sectional overhead doors represent the benchmark standard for exterior building envelopes and temperature-controlled loading dock bays.
Continuous Polyurethane Foam Sandwich Panels (R-14 to R-18.4)
Commercial sectional doors feature horizontal steel sandwich panels injected with high-density closed-cell polyurethane foam. Continuous foaming chemically bonds the insulation core to the exterior and interior steel skins, creating a rigid composite panel. A 2-inch polyurethane injected panel delivers exceptional thermal performance (R-16.0 to R-18.4), making sectional doors the optimal choice for refrigerated warehouses and exterior dock bays.
Track Lift Geometry: Standard, High Lift, and Full Vertical Lift
Sectional doors offer flexible track lift geometries to accommodate diverse interior warehouse heights. Standard lift tracks route panels horizontally near the door header. High lift tracks route panels upward along the interior wall before curving under the ceiling. Full vertical lift tracks travel straight up the wall, completely eliminating horizontal ceiling tracks and preventing forklift mast collisions during staging operations.
Ideal Facilities: Cold Storage Warehouses and Loading Dock Bays
Insulated sectional doors excel in logistics bays and cold storage receiving docks operating at low-to-moderate cycle frequencies. Multi-point perimeter compression seals and thermal break edge caps prevent exterior drafts from compromising interior building climate boundaries.
Rolling Steel and Security Shutters: Maximum Physical Defense and Space Saving
Rolling steel doors and security shutters provide strong physical defense and extreme spatial efficiency in demanding industrial settings.
Interlocking Steel Slats (18 to 22-Gauge Galvanized Construction)
Rolling steel doors utilize individual interlocking curved or flat slats fabricated from 18-gauge to 22-gauge hot-dipped galvanized steel or stainless steel. When the door opens, the curtain coils tightly around a motorized overhead barrel drum mounted directly above the opening. This heavy-gauge steel curtain delivers formidable resistance against forced entry, vandalism, and harsh environmental debris.
Compact Overhead Barrel Housing and Zero Ceiling Incursion
Because rolling steel doors coil compactly into a self-contained overhead hood, they require zero horizontal ceiling track intrusion. This compact footprint leaves the entire ceiling space completely unobstructed for overhead bridge cranes, high-density pallet racking, industrial lighting grids, and fire suppression pipe networks.
Ideal Facilities: Manufacturing Plants, Exterior Security, and Heavy Industry
Rolling steel coiling doors are standard across heavy manufacturing facilities, industrial equipment storage bays, rail car maintenance sheds, and high-security warehouse perimeters requiring dependable structural barrier protection.
| Industrial Door Type | Operating Cycle Speed | Typical Thermal Rating | Ceiling Footprint Requirement | Primary Facility Application |
|---|---|---|---|---|
| High-Speed Fabric Roll-Up | 40 – 120 IPS | R-2 to R-12 | Compact overhead roll drum | High-traffic logistics, food processing, cleanrooms |
| Insulated Sectional Overhead | 8 – 14 IPS | R-14 to R-18.4 | Standard, high, or vertical tracks | Loading dock bays, cold storage warehouses |
| Rolling Steel Shutter | 6 – 10 IPS | R-4 to R-10.9 (Insulated) | Zero ceiling track intrusion | Heavy manufacturing, exterior perimeter security |
| Cleanroom High-Speed Barrier | 40 – 80 IPS | Air pressure seal (50 Pa) | Compact stainless steel hood | Pharmaceutical labs, semiconductor cleanrooms |
| Deep-Freeze Insulated Barrier | 60 – 100 IPS | R-15 to R-40 | Heated guide track columns | Sub-zero freezers, cold chain holding vaults |
Specialty Cleanroom and Cold Storage Doors: Controlled Environment Isolation
Specialized industrial environments require custom door engineering to maintain strict hygiene standards, air pressure cascades, and sub-zero temperatures.
Cleanroom High-Speed Doors: ISO 14644-1 Air Pressure Integrity
Pharmaceutical and semiconductor cleanrooms mandate strict air pressure retention to prevent cross-contamination. Cleanroom high-speed doors feature non-porous antimicrobial curtains, smooth stainless steel guide columns without open crevices, and continuous magnetic seals. These doors withstand positive and negative air pressure differentials up to 50 Pa while complying with ISO 14644-1 Class 5 to Class 8 air cleanliness standards.
Sub-Zero Freezer Doors: Active Defrost Cables and Heated Track Guides
Deep-freeze facilities operating down to -30°F require integrated defrost engineering to stop moisture condensation from freezing into structural ice. High-speed freezer doors incorporate self-regulating electric heat trace cables delivering 15 to 30 Watts per linear foot inside vertical side tracks. Dual-curtain insulated air cavities circulate warm dehumidified air, keeping curtain surfaces frost-free without energy-hungry blowers.
Sanitary 304 Stainless Steel Washdown Enclosures
Meat packaging and dairy processing facilities endure daily high-pressure chemical washdowns. Sanitary door assemblies utilize 304 or 316-grade stainless steel side columns, sloped head cowlings, and NEMA 4X waterproof control enclosures to resist corrosive sanitizing agents and prevent bacterial harboring.
Industrial Fire-Rated and Wind-Load Doors: Structural Code Compliance
Industrial facility perimeters and internal firewall boundaries must comply strictly with national safety standards and local municipal building codes.
NFPA 80 / UL 10B Fire Door Ratings (3-Hour Fire Barriers)
Fire-rated rolling steel doors act as physical fire barriers between connected warehouse compartments. Tested under UL 10B and NFPA 80 standards, these assemblies carry 45-minute, 90-minute, 3-hour, or 4-hour fire ratings. Modern fire doors incorporate motorized auto-reset release mechanisms connected directly to central facility smoke and fire alarm systems, automatically closing the doorway during emergency events.
DASMA 108 Wind Load Reinforcement for Coastal Facilities
Structural wind calculations require evaluating positive external pressure during storm fronts and negative internal building draw caused by industrial exhaust ventilation fans. In heavy manufacturing facilities, exhaust ventilation systems generate negative interior pressure differentials exceeding 15 to 25 PSF. Specifying doors with heavy-duty structural reinforcement struts prevents panel deflection from binding track rollers during emergency operating cycles.
Exterior commercial doors installed in high-wind regions must withstand severe positive and negative design wind pressures under DASMA 108 standards. Heavy-duty doors incorporate horizontal structural steel U-struts and heavy-duty 3-inch wind lock guide rollers. These reinforcements prevent door panels from blowing out of their structural wall frames during major storms.
Total Cost of Ownership Matrix: Initial CAPEX vs. 10-Year Lifecycle OPEX
A comprehensive financial evaluation of industrial door types must calculate energy conservation, maintenance labor, and component replacement costs over a ten-year operational lifespan.
Factoring Energy Loss, Spring Maintenance, and Collision Repair
Low-cost manual doors in high-traffic bays incur substantial ongoing expenses. A single uninsulated doorway can lose thousands of dollars in conditioned air annually. Standard 10,000-cycle torsion springs require frequent replacement, while rigid panel forklift collisions cost thousands per repair incident. In contrast, automated high-speed doors with 100,000-cycle springs and self-repairing curtains virtually eliminate repair downtime.
Return on Investment (ROI) Timeline Across High-Frequency Bays
Facilities operating more than 30 cycles daily per doorway typically recover the capital expenditure difference of a high-speed or knockout door within 18 to 24 months. The compounding savings from lower electrical utility bills, reduced forklift maintenance, and uninterrupted logistics workflow deliver superior ten-year net return on investment.
Facility Selection Decision Matrix: Matching Door Types to Operational Demands
Use the following engineering decision grid to identify the optimal industrial door type based on your facility’s operational environment.
| Facility Environment | Daily Operating Cycles | Core Operational Challenge | Recommended Industrial Door Type |
|---|---|---|---|
| High-Traffic Logistics Cross-Dock | 50 – 200+ cycles/day | Forklift collision damage & cycle speed | High-Speed Fabric or Knockout Sectional |
| Refrigerated Warehouse / Cooler Bay | 10 – 40 cycles/day | Thermal insulation & climate control | Insulated Sectional Overhead (R-18.4) |
| Deep-Freeze Holding Vault (-20°F) | 20 – 100+ cycles/day | Frost formation & extreme thermal loss | Dual-Curtain High-Speed Freezer Door |
| Heavy Manufacturing Plant | 5 – 20 cycles/day | Ceiling clearance & forced-entry security | Heavy-Gauge Rolling Steel Coiling Door |
| Pharmaceutical / Bio-Lab Cleanroom | 30 – 150 cycles/day | Air pressure integrity & sterile washdown | ISO Class 5 Cleanroom High-Speed Door |
Frequently Asked Questions About Industrial Door Types
What are the main types of industrial doors used in commercial facilities?
The primary types of industrial doors include high-speed fabric, insulated sectional, rolling steel, and specialty cleanroom barriers. Each architecture is engineered for distinct cycle speeds, thermal ratings, and security requirements.
Which industrial door type is best for cold storage warehouses?
For high-traffic freezer doorways, dual-curtain high-speed doors with heated guide tracks deliver the best climate retention. For low-traffic holding bays, 2-inch polyurethane insulated sectional doors delivering R-18.4 are ideal.
What is the difference between sectional overhead and rolling steel doors?
Sectional doors provide high thermal insulation (R-14 to R-18) and seal compression, but require horizontal ceiling tracks. Rolling steel doors coil into an overhead drum to save ceiling clearance, but offer lower insulation.
How long do commercial industrial doors last?
With proper preventive maintenance, heavy-duty commercial sectional and rolling steel doors last 15 to 25 years. High-speed fabric curtains typically operate for over 1,000,000 cycles, requiring only routine roller and drive belt inspections.
Why are high-speed doors recommended for busy logistics bays?
High-speed doors open at velocities up to 120 inches per second, minimizing doorway exposure during forklift passage. They reduce air infiltration by 70% and feature self-repairing curtains that eliminate collision downtime.
Engineer and Specify the Right Industrial Door Solution
Selecting the optimal industrial door system protects building thermal performance, prevents costly vehicle impact downtime, and enhances worker safety. Matching the correct operating speed, polyurethane insulation density, and structural track profile ensures long-term operational efficiency across your facility doorways.
If you are planning a facility retrofit or specifying doors for new construction, our engineering team is available to assist. Explore our commercial industrial door systems or contact our technical specialists to submit your architectural drawings for a customized industrial door sizing and motor specification proposal.
